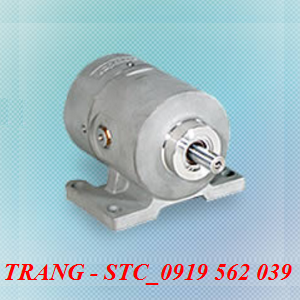

Bộ mã hóa vòng quay tuyệt đối
Xuất sứ: Japan
Nhà cung cấp: NSD Group
Hãng sản xuất: NSD Group
Ứng dụng sản phẩm: Ngành Thép
0916869426NSD GROUP - Sản Phẩm Được Phân Phối Độc Quyền Bởi
NSD VietNam STC VietNam
Model coding
| ①Sensor model | ②Phase type | ③Mounting | ④Shaft shape | ⑤Connector type | ⑥Interconnecting | ⑦Silicon oil injected | |
| sensor cable (m) | |||||||
| VRE- | P | 61 | F | K | B | - | - |
| P | 74 | F | K | B | 2 | -G | |
| P | 97 | F | K | B | 2 | -G | |
| P | 101 | F | K | B | 2 | -G | |
| 16TS | 100 | F | K | B | 2 | -G | |
| 10TP | 68 | F | K | B | 2 | - | |
| 10TP | 101 | F | K | B | 2 | -G |
|
Red word select the required specification.
②Phase type
P[Standard type] 16TS[High-resolution type] 10TP[ABSO PULPUL-only®]
③Mounting
F[Fiange-mount type] L[Base-mount type] M[Face-mount (Only by 068,074)]
④Shaft shape
K[Sunk key]
⑤Connector type
- B[Standard connector for NSD standard cable]
- P[Large connector for JKPEV-S cable]
- R[Terminals for Commercially available cable and NSD standard cable]
⑥Interconnecting sensor cable (m)
2[2m] 5[5m] 10[10m] 20[20m] VRE-□SP061:only by 2m
⑦Silicon oil injected
G[Silicon oil injected] Blank[None]
